Physis 菲仕電機
Company Profile
企業簡介
寧波菲仕技術股份有限公司(簡稱:菲仕技術)成立于 2001 年，由民營控股、先進制造產業投資基金和寧波和豐創業投 資有限公司等戰略投資人參股，公司致力于以電驅動技術為核心的創新及產業化，為運動控制和能量轉換領域提供系統產品和 綜合解決方案， 經過多年的品牌沉淀，菲仕已成為一家集研發、生產、銷售為一體，擁有國內外多家控股子公司的集團化創新 型高科技企業。
Ningbo Physis Technology Co., Ltd. was founded in 2001, which is a private enterprise holding group company, invested by Advanced Manufacturing Fund and Ningbo Hefeng Venture Capital Co., Ltd. Physis always devotes to innovation and industrialization of electrical drive technology, provides servo products and solutions for the field of motion control & energy conversion. After years of brand development and accumulation, Physis became a collectivized & innovative high-tech enterprise, which collects together research and development (R&D), production and sale, has a numbers of domestic and overseas subsidiaries.
R&D Team
研發團隊
3個研發中心
4個生產基地
300+研發團隊
350+ 授權專利
在智能制造全球化的趨勢中，菲仕逐步落地國際化的戰略布局，在歐洲成立了研發中心，與國內外專業科研機構、專家合作， 進行定期交流和互動，以保持公司持續站立在伺服系統科技創新的最前沿，共同推進產業發展。經過多年的沉淀，頂尖人才的積累， 菲仕在國內擁有省級工程技術中心、省級高新技術企業研究開發中心，并入選了國家工信部第一批專精特新“小巨人”企業!
In the globalization tendency of intelligent manufacture, Physis implements the strategic layout of the group internationalization gradually, builds the R&D center in Europe, communicate and interact regularly with the world-class scientific research institution & industry experts, which makes Physis hold on the lead of the servo system technology innovation and promote industrial development together! After years of development, accumulation of talents, Physis has provincial engineering & technology center and more than 200 people of R&D team. Until now, Physis has more than 300 patents.
電機產品系列
XT Series DD Servo Motors
XT系列直驅力矩電機

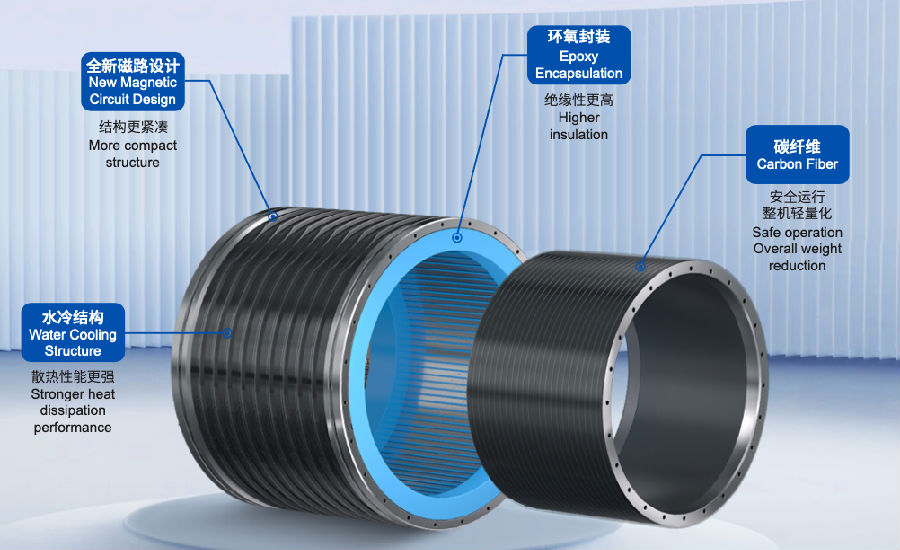

Product Features 產品特點
ü 高功率密度
高功率密度:XT 系列通過新工藝線圈排布技術，大幅提升了槽滿率，使得電機在扭矩密度達到行業領先水平。
ü 強工藝技術
采用先進的真空環氧澆注工藝，并輔以獨特的冷卻結構設計。這一組合不僅顯著增強了電機的散熱性能，提高了絕緣等級，還大大增強了電機的
結構穩定性，確保電機在長時間、高負荷運行下的可靠性。
ü 緊湊設計
電機結構緊湊，無框設計便于集成在 A 軸、B 軸、C 軸內部，適應各種空間緊湊、高扭矩的嚴苛應用場景，方便安裝與維護。
ü 系列化全面覆蓋
該系列電機定子外徑范圍覆蓋 210mm ~ 1220mm，扭矩范圍從 60 牛米擴展至 5 萬牛米。廣泛適用于機床行業的五軸機床、直驅搖籃轉臺和直驅 擺頭等高性能需求的應用場合，為現代工業制造提供了強有力的動力支持。
High Power Density: The XT series, through innovative coil arrangement technology, has significantly increased the slot fill rate, allowing the motor to achieve industry-leading levels of torque density.
Robust Craftsmanship: Utilizing advanced vacuum epoxy pouring techniques, complemented by a unique cooling structure design. This combination not only significantly enhances the motor's heat dissipation capabilities and insulation level but also greatly strengthens the structural stability of the motor, ensuring reliability during long periods of high-load operation.
Compact Design: The motor features a compact structure with a frameless design that facilitates integration within the A-axis 、B-axis、C-axis, adapts to various space-constrained, high-torque demanding application scenarios, and simplifies installation and maintenance.
standardization & serialization: This series of motors covers a stator outer diameter range from 210mm to 1220mm, with torque ranging from 60 Nm to 50,000 Nm. It is widely applicable to high-performance requirements in the machine tool industry, such as five-axis machine tools, direct-drive cradle rotary tables, and direct-drive swing heads, providing robust power support for modern industrial manufacturing.

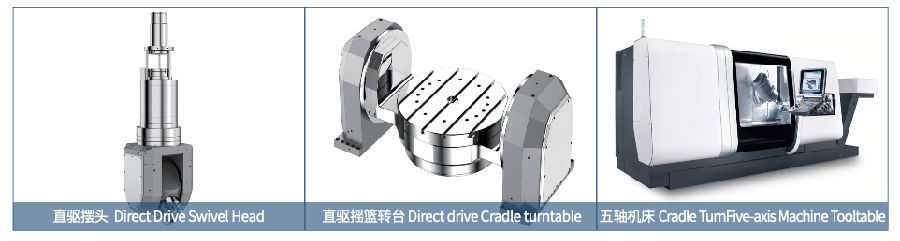

Application 應用領域
直驅擺頭 Direct Drive Swivel Head
直驅搖籃轉臺 Direct drive Cradle turntable
五軸機床 Cradle TurnFive-axis Machine Tooltable

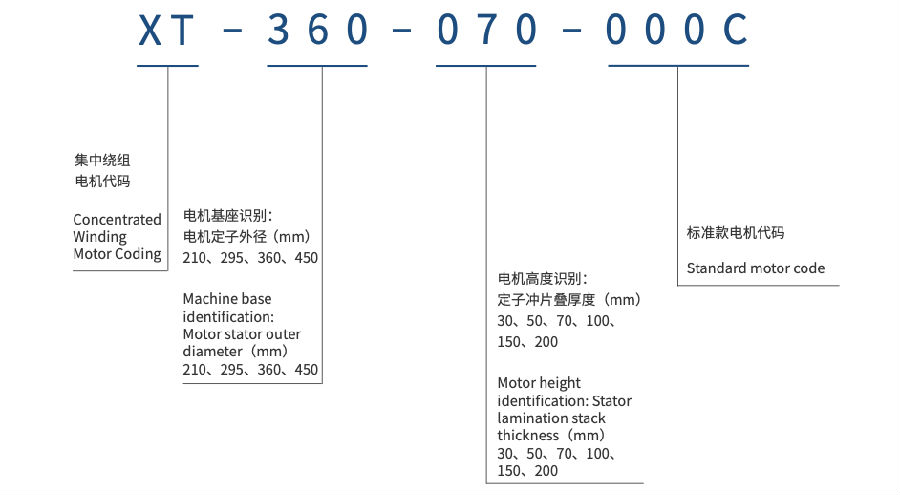

Servo Motor Code
XT 系列伺服電機代碼
訂購代碼示例:
XT360-070-000C
定子外徑 360mm，疊厚 70mm 的標準款集中繞組力矩電機
Order Code Example:
XT360-070-000C
The outer diameter of the stator is 360mm, and the stacking thickness is 70mm

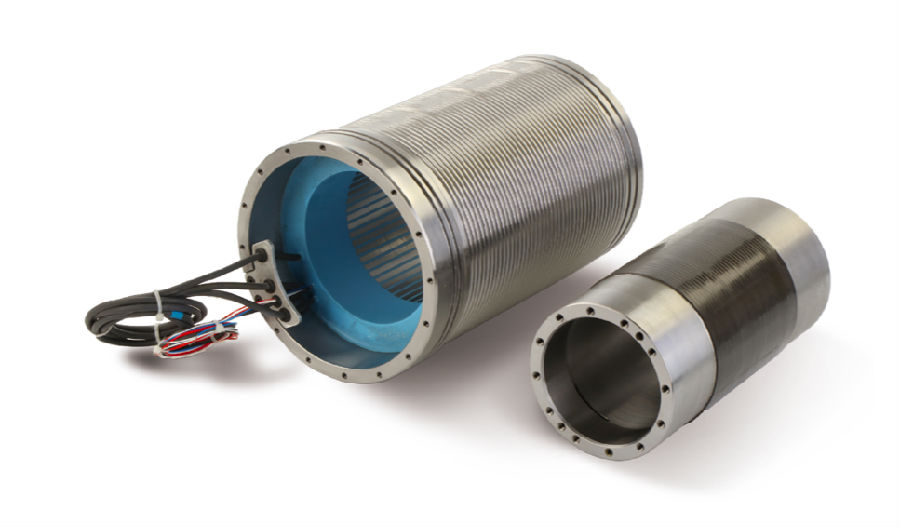

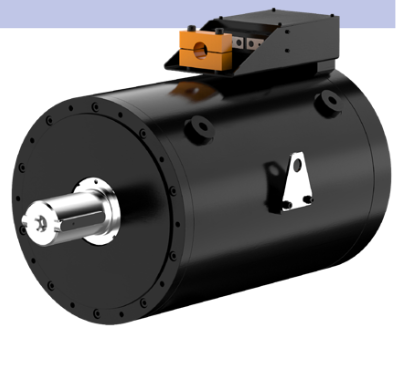

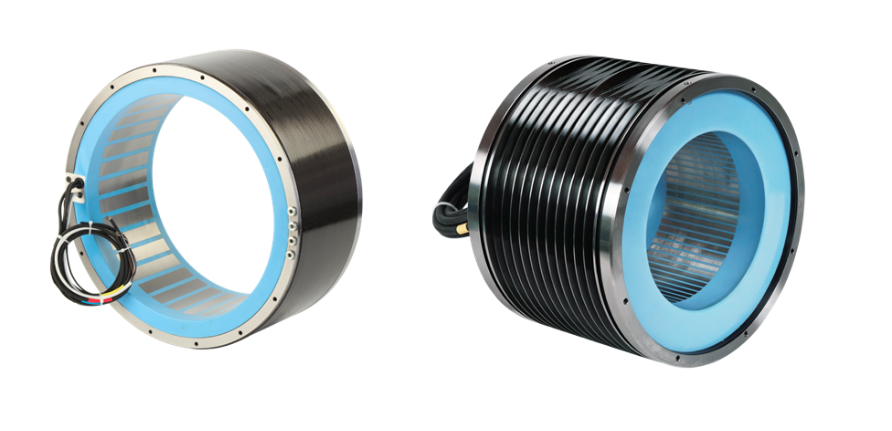

TK Series DD Servo Motors
菲仕 TK 系列直驅力矩伺服電機
菲仕 TK 系列直驅力矩伺服電機具有高轉矩密度，為 高性能的運動控制場景而設計。標準無框架結構，分離式 定轉子，適于集成到應用設備內部。另可根據行業應用， 定制專用結構，比如，金屬成型行業可為整機、單軸承結 構等等。
TK series direct drive servo motor provide the high torque density for high-performance motion control applications. Standard frameless structure is provided with separate stator and rotor, suitable for integration into the equipments. In addition, it can also be made with special structural design for some industries, for example, a complete machine structure, a single bearing structure for the metal forming industry,etc.
額定扭矩: 5Nm ~ 20000Nm 額定轉速: 1rpm ~ 35000rpm 峰值功率: 0.5kW ~ 900kW 冷卻方式: 自然冷，水冷 連接方式: 散線，航插，接線盒 溫度傳感器:KTY84 & PTC130
Rated Torque : 5Nm ~ 20000Nm
Rated Speed : 1rpm ~ 35000rpm
Peak Power : 0.5kW ~ 900kW
Cooling : natural convection, water cooling
Connection method : power cable, plug connector, connection box Temperature Sensor : KTY84 & PTC130
主要特點 Features
負載直連，簡化傳動機構，可靠性高 定轉子結構緊湊，體積小 , 重量輕 低速運轉平穩，扭矩大 直接驅動，機械傳動效率高 啟動扭矩大 , 噪音小 , 過載能力強 扭矩常數大 , 電流小 , 驅動器成本低 高速弱磁區大扭矩輸出
Directly-connected load, simplified transmission mechanism, and higher reliability; The stator and rotor are compact in structure, small size and light weight;
Smooth operation at low speed, with large torque;
Direct-drive, high mechanical transmission efficiency;
High starting torque, low noise, and strong overload capacity; High torque constant, small current, and low drive cost; High-speed field weakening area and large torque output;
適用場合 Applications
直接驅動應用
低速大扭矩應用
高響應高精度定位控制應用
萬轉高速應用
空間緊湊的應用
Direct-drive applications;
Low-speed and high-torque applications;
High-response and high-precision positioning controls applications; High-speed rotation application;
Compact space applications;
